SF opens the door to the future
Thermal Doors
REFRIGERATION DOOR
Sliding (Automatic/Manual)

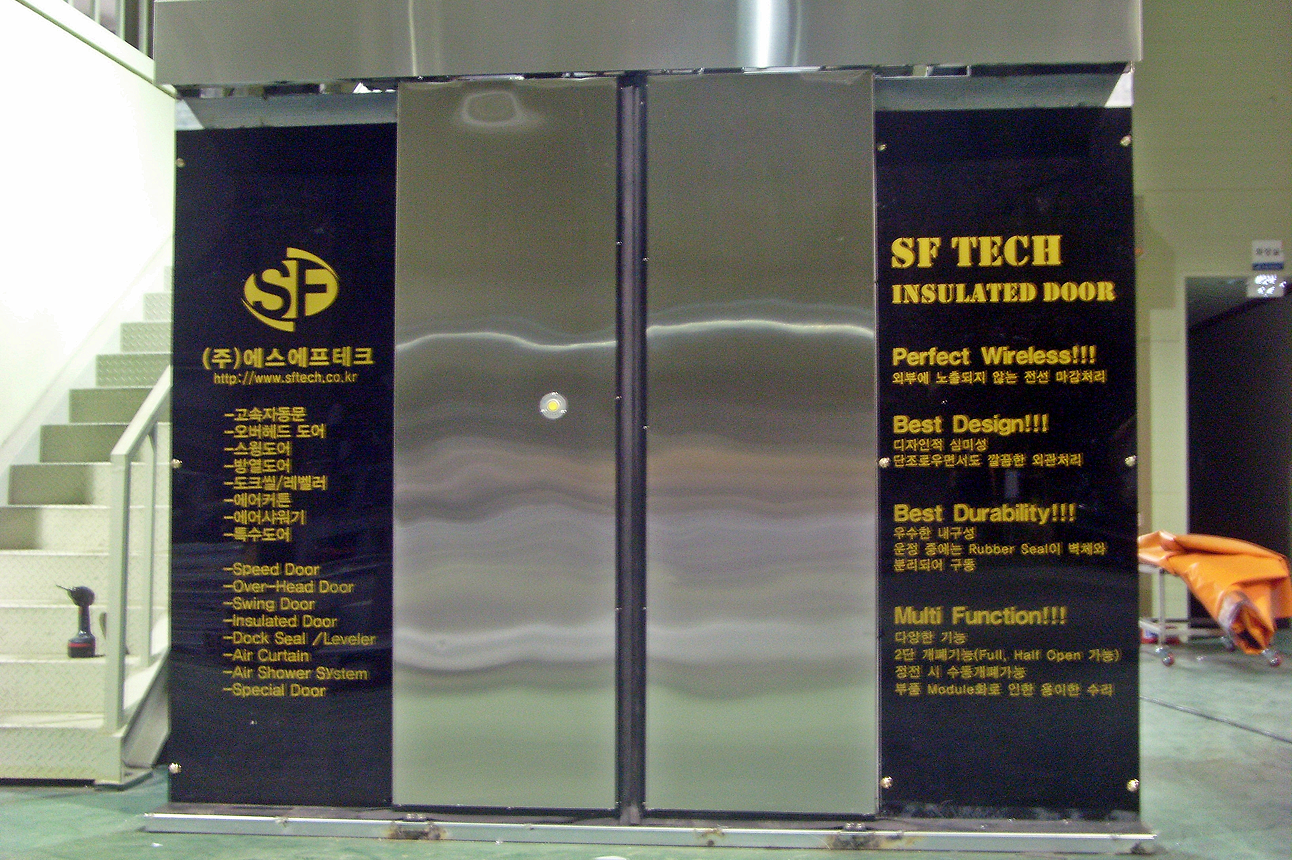

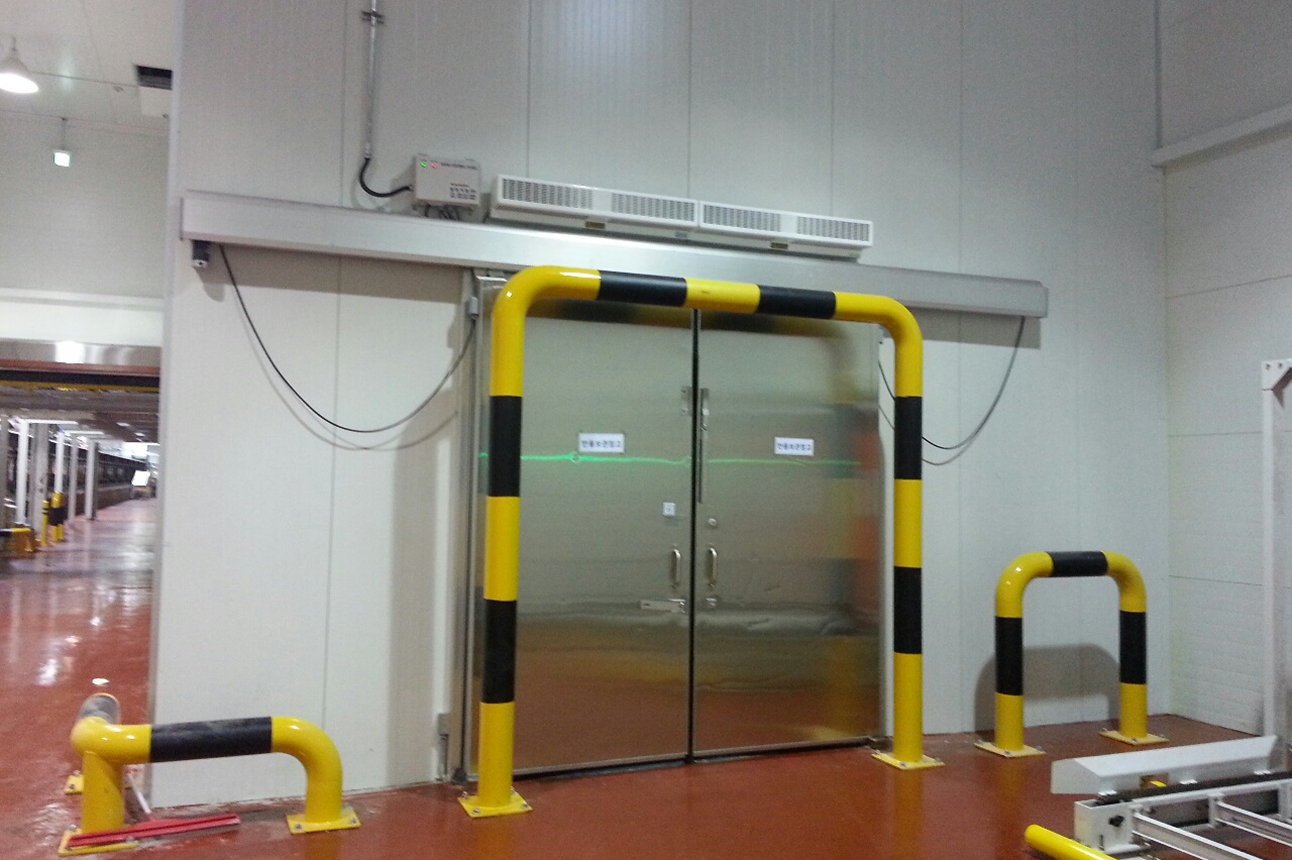

Automatic/Manual Double-Sliding Doors
Highly suitable for cold storage, refrigeration, and freezer facilities with frequent forklift access.

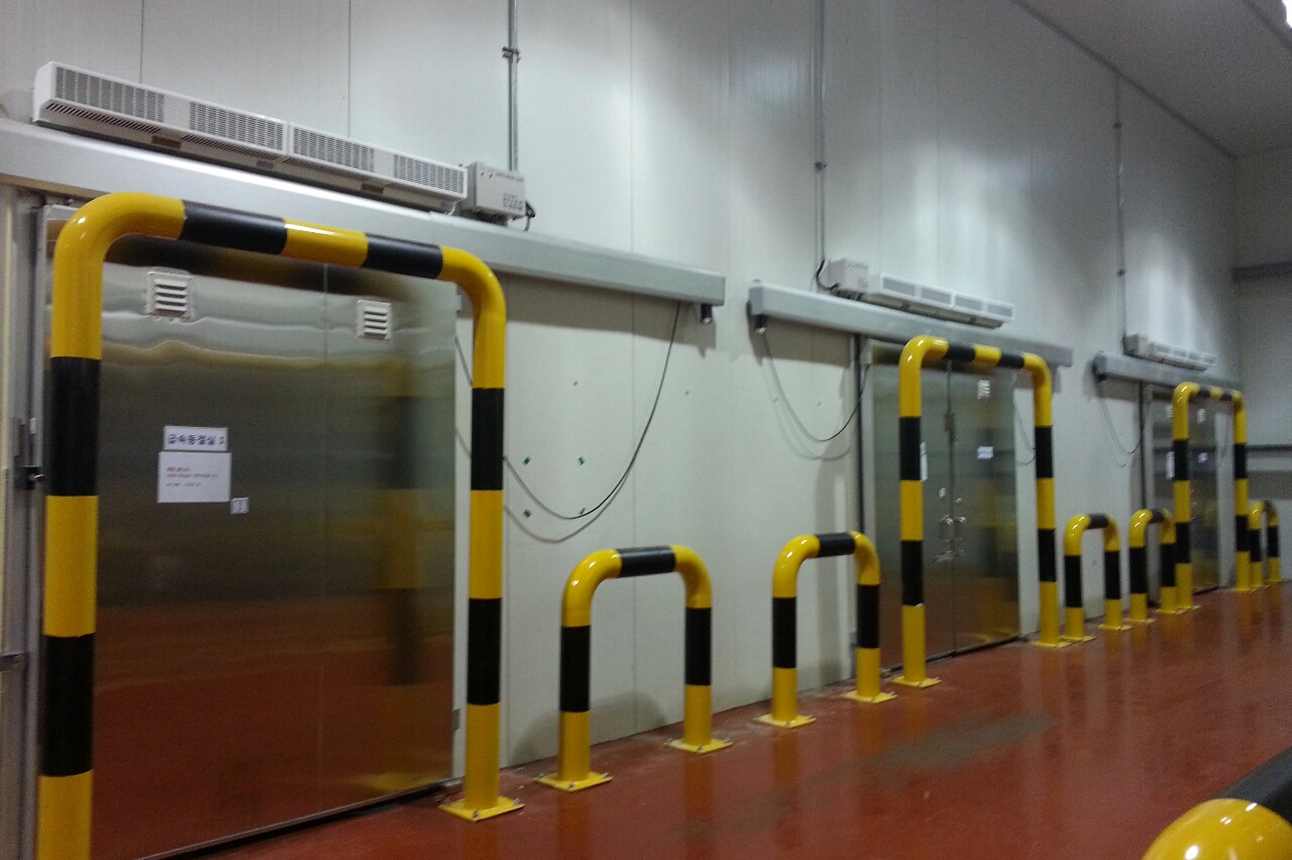

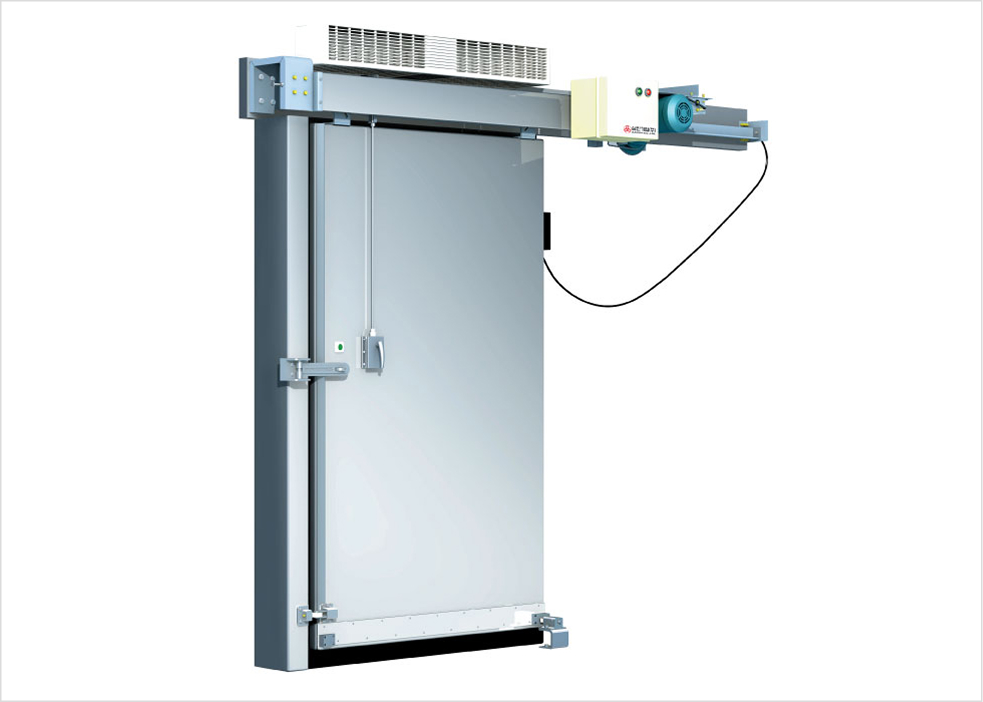

Automatic/Manual Single-Sliding Doors
Ideal for cold storage, refrigeration, and freezer facilities with frequent forklift movement.

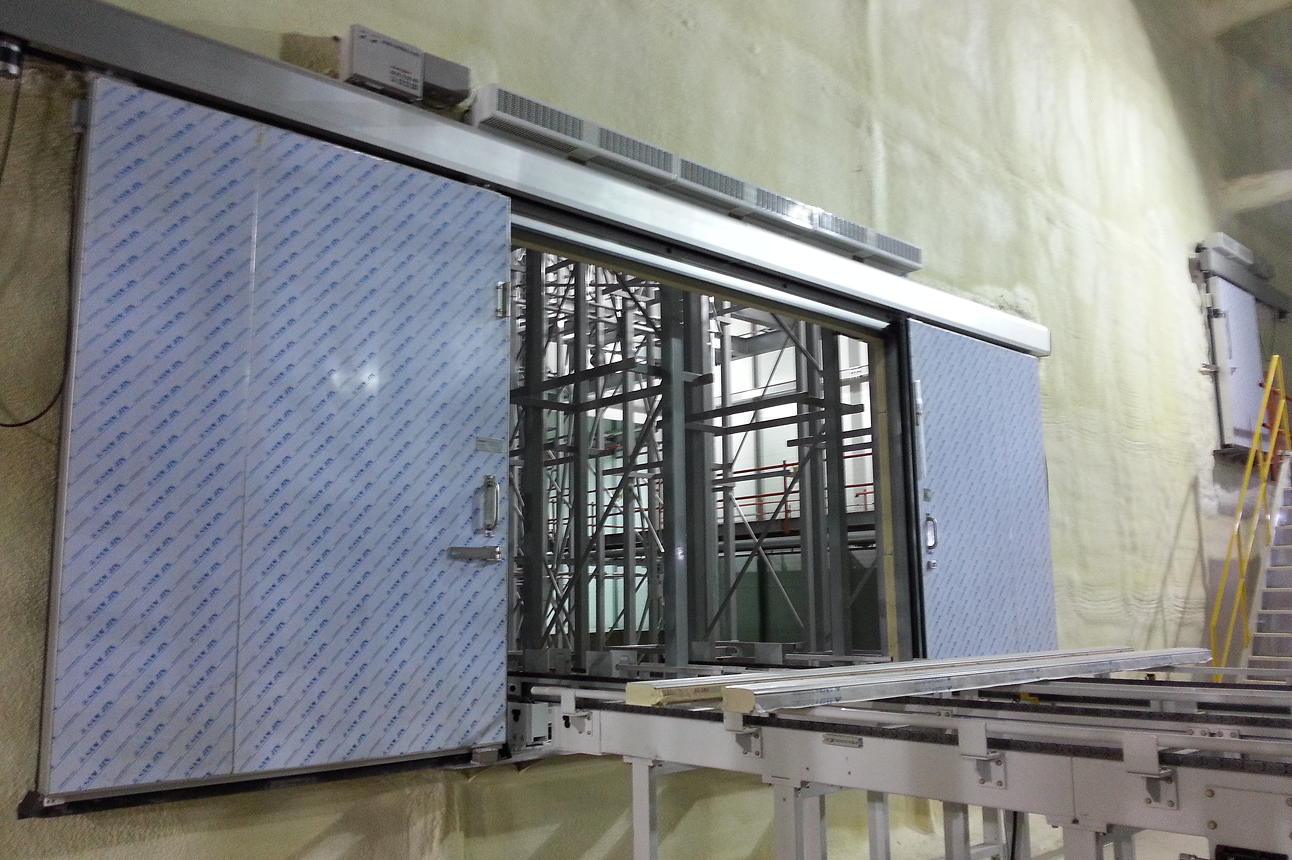

Sliding Fire-Resistant Door Installation Case

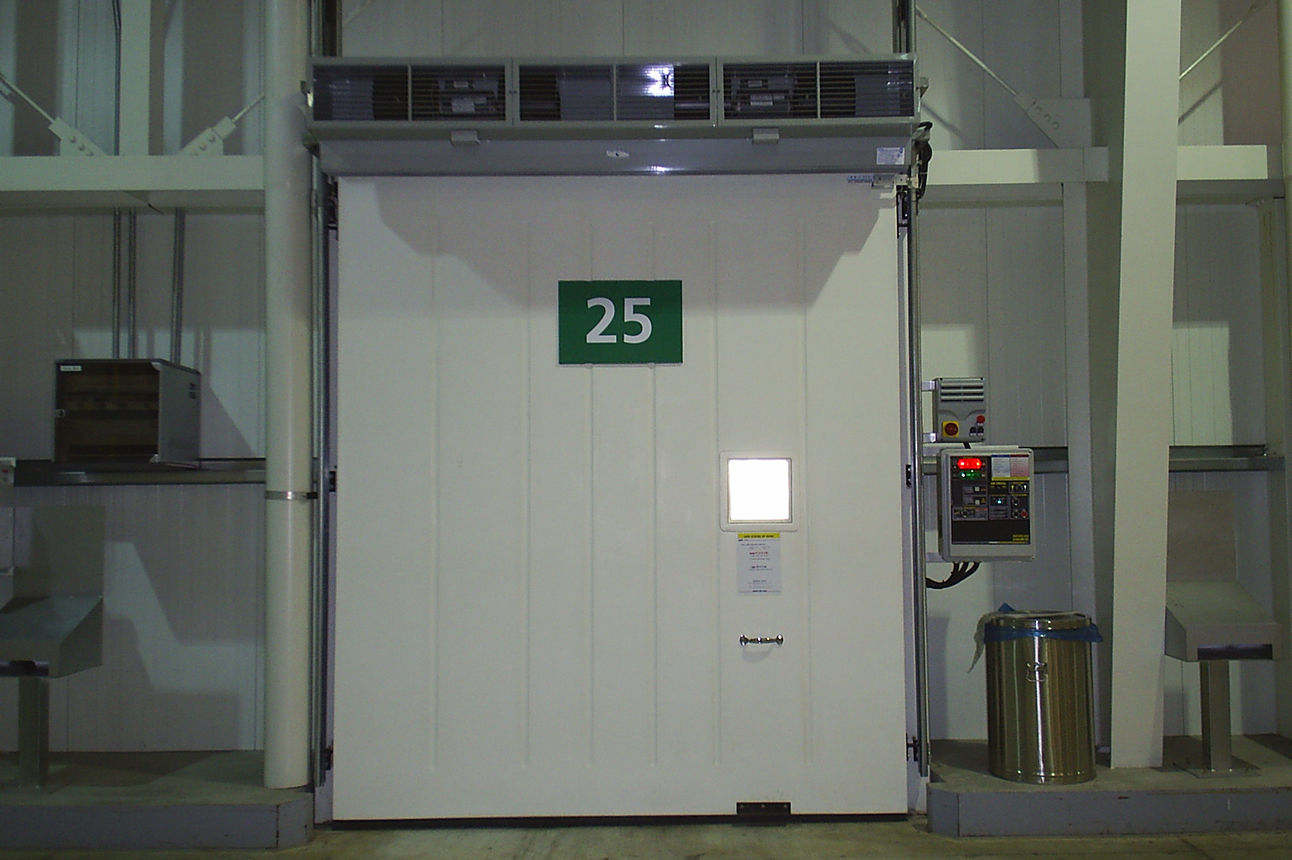

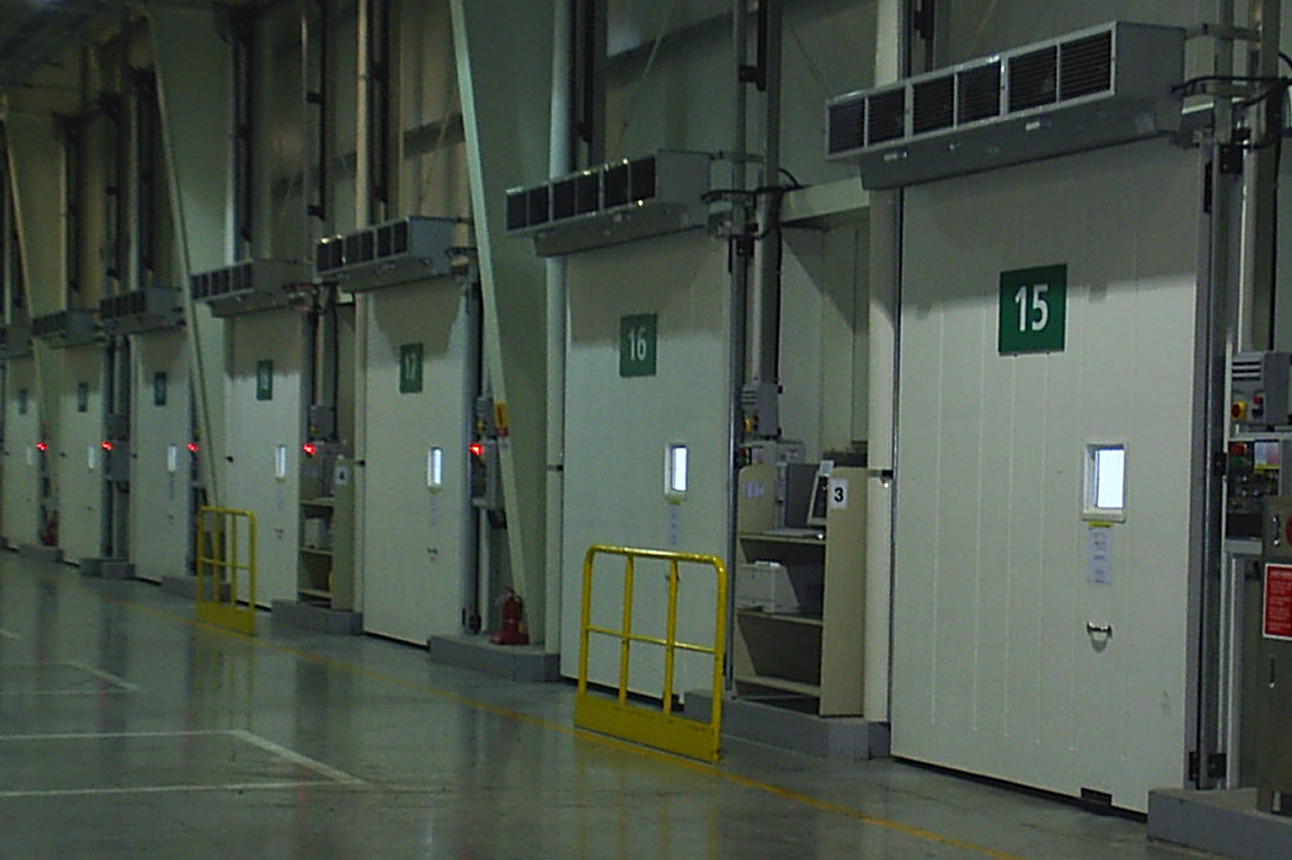

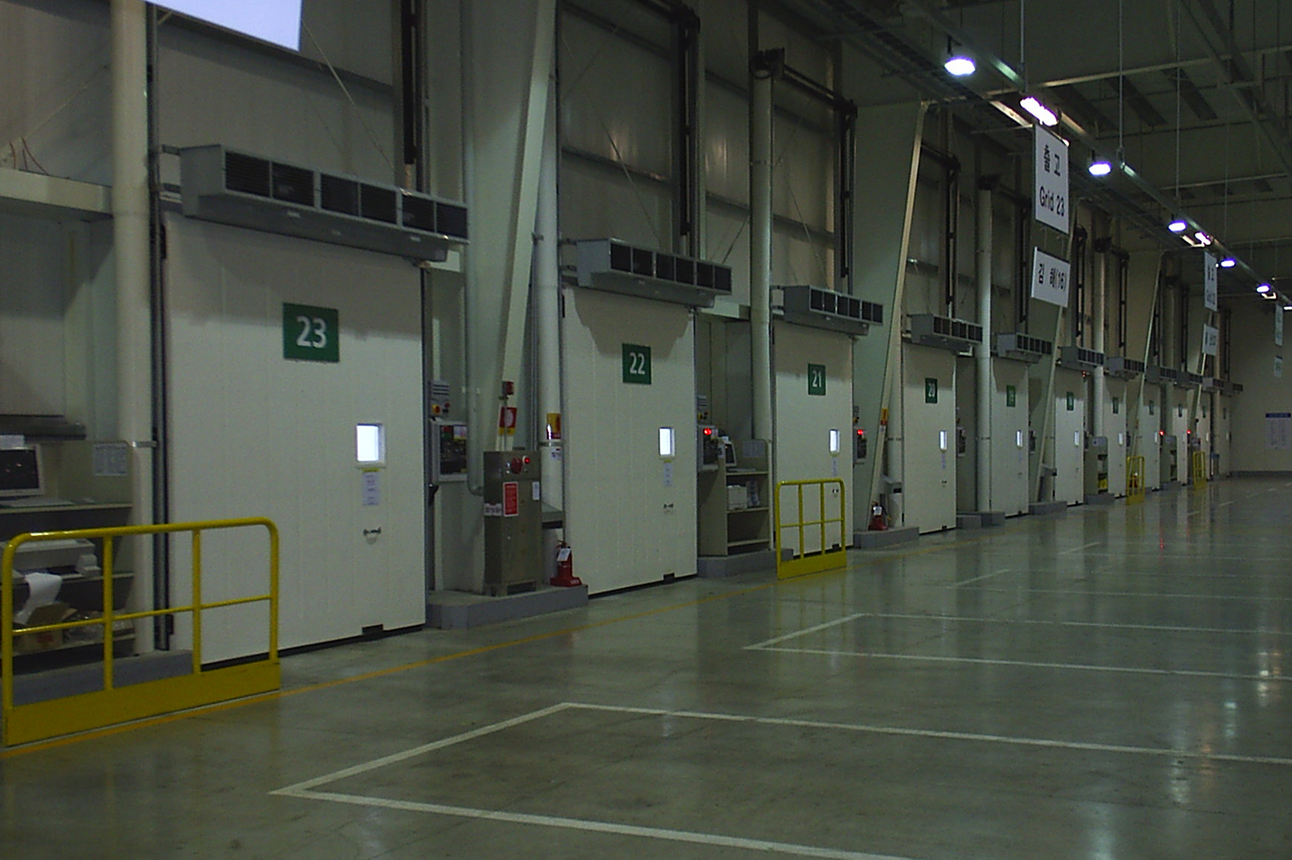

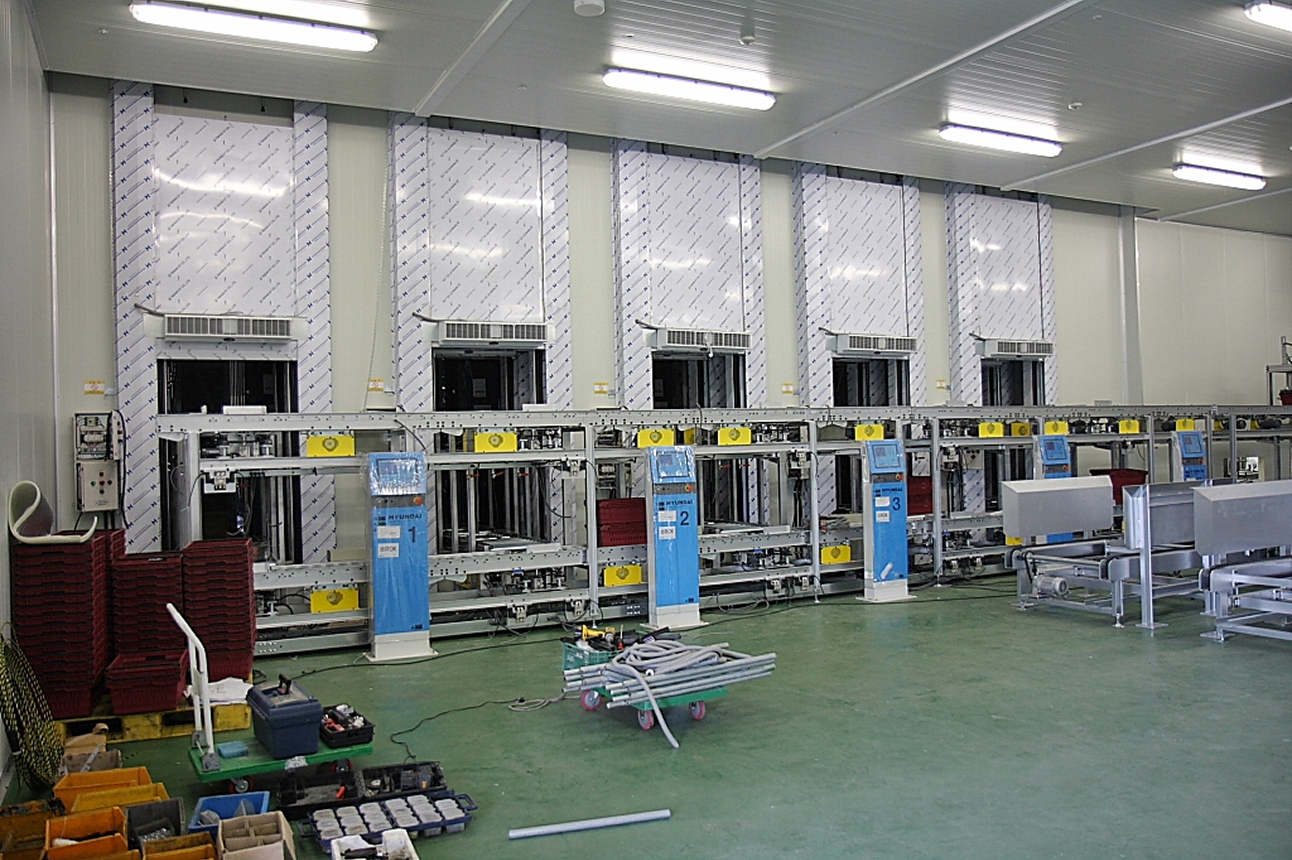

Vertical Fire-Resistant Door Installation Case
Specifications for Automatic Double/Single Sliding Doors
Item Specification
Size Width : 2,200~4,000 / Height : 2,400~6,000
Surface Material,
Protective Panel		 STS THK 0.8 H/L, Color Steel Plate
Interior Material CSD : Rigid Urethane Foam 100T (Ambient/Cold Storage)
CSD : 125T (Freezer)
ATD : Rigid Urethane Foam 50~75TE
Motor Single-phase AC220V 2KW, BLDC Motor 200W
Rail Aluminum, Downward Compression Type (Door Closes)
Operation Method Half Switch, Remote Control (Multi-Channel)
Motor Drive Brake Type
Frame &
Door Molding		 Built-in Heater (Maintains 40~50°C)
Manual Double-Sliding Door Specifications
Item Specification
Size Width : 2,200~4,000 / Height : 2,400~6,000
Surface Material,
Protective Panel		 STS THK 0.8 H/L, Color Steel Plate
Interior Material CSD : Rigid Urethane Foam 100T (Ambient/Cold Storage)
CSD : 125T (Freezer)
ATD : Rigid Urethane Foam 50~75TE
Rail Aluminum, Downward Compression Type (Door Closes)
Frame &
Door Molding		 Built-in Heater (Maintains 40~50°C)
Manual Single-Sliding Door Specifications
Item Specification
Size Width : 1,200~2,400 / Height : 2,000~3,000
Surface Material,
Protective Panel		 STS THK 0.8 H/L, Color Steel Plate
Interior Material CSD : Rigid Urethane Foam 100T (Ambient/Cold Storage)
CSD : 125T (Freezer)
ATD : Rigid Urethane Foam 50~75T
Rail Aluminum, Downward Compression Type (Door Closes)
Frame &
Door Molding		 Built-in Heater (Maintains 40~50°C)
