SF opens the door to the future
HIGH-SPEED DOOR

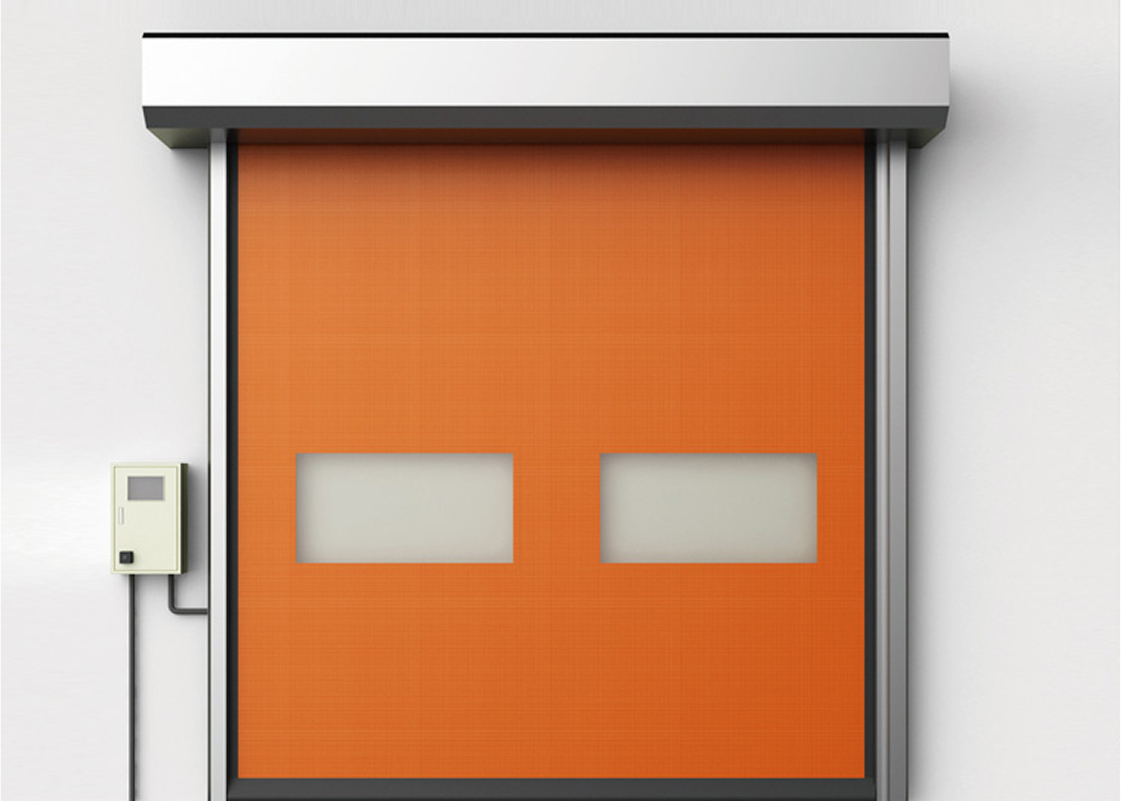

Auto Repairing Type Speed door
Stability
In case of vehicle impact, the door curtain tears and the door automatically recovers, minimizing damage.
Airtightness
Minimizes gaps between the vehicle door curtain and rail track, keeping indoor contamination from outside air very low.
Counterbalance
Non-gravity system ensures smooth operation without noise or malfunction.
Safety
No unexpected falling hazard, and impact during descent avoids serious damage.

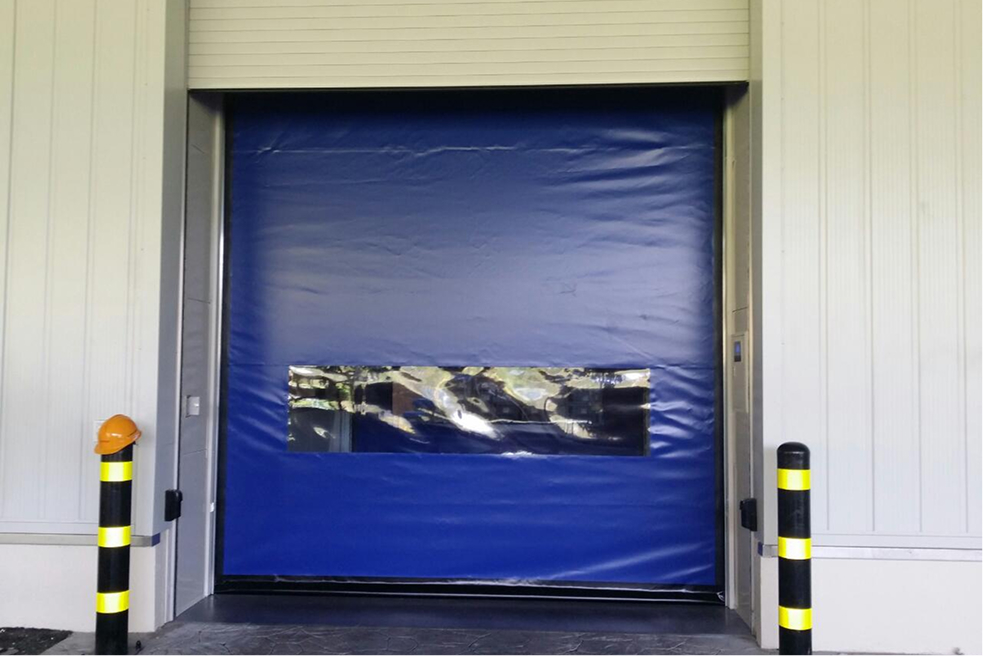

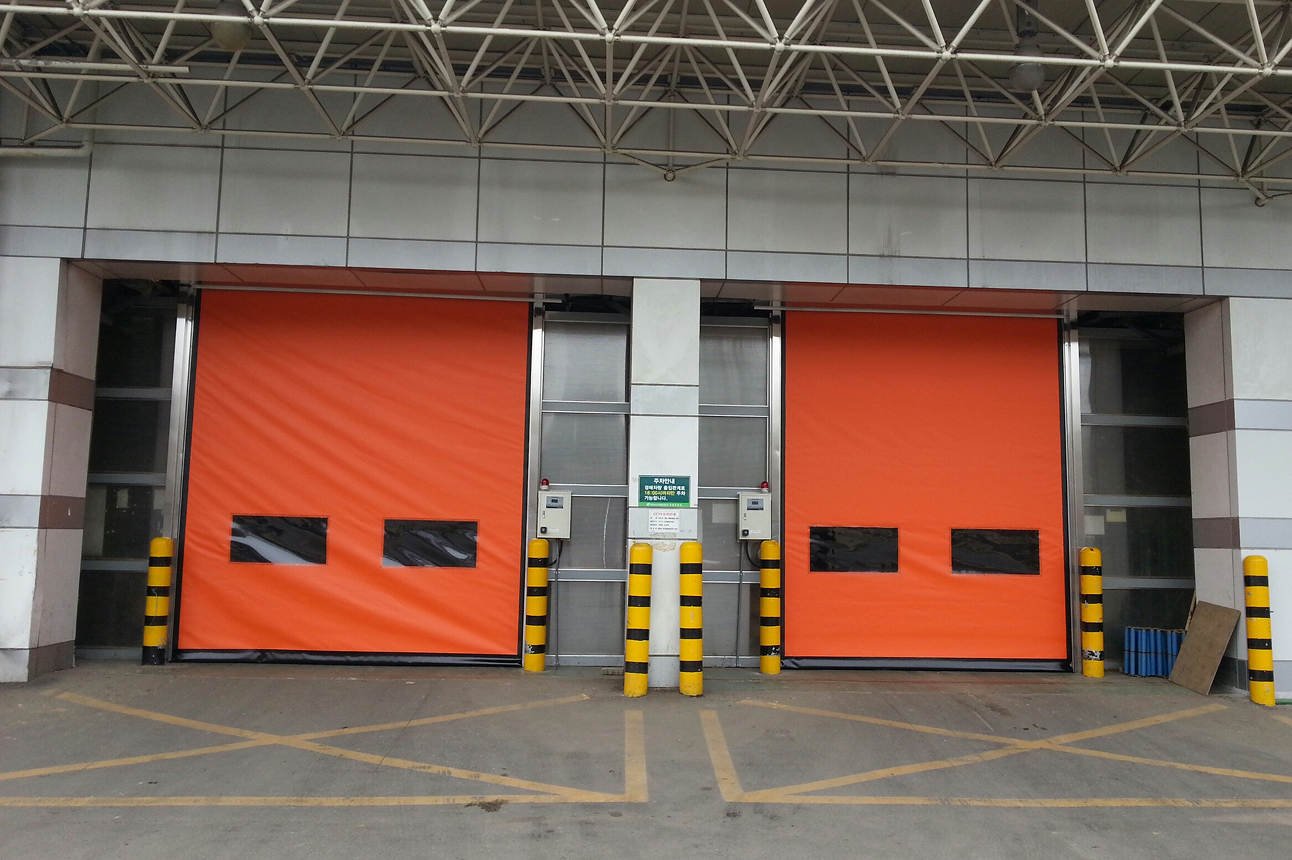

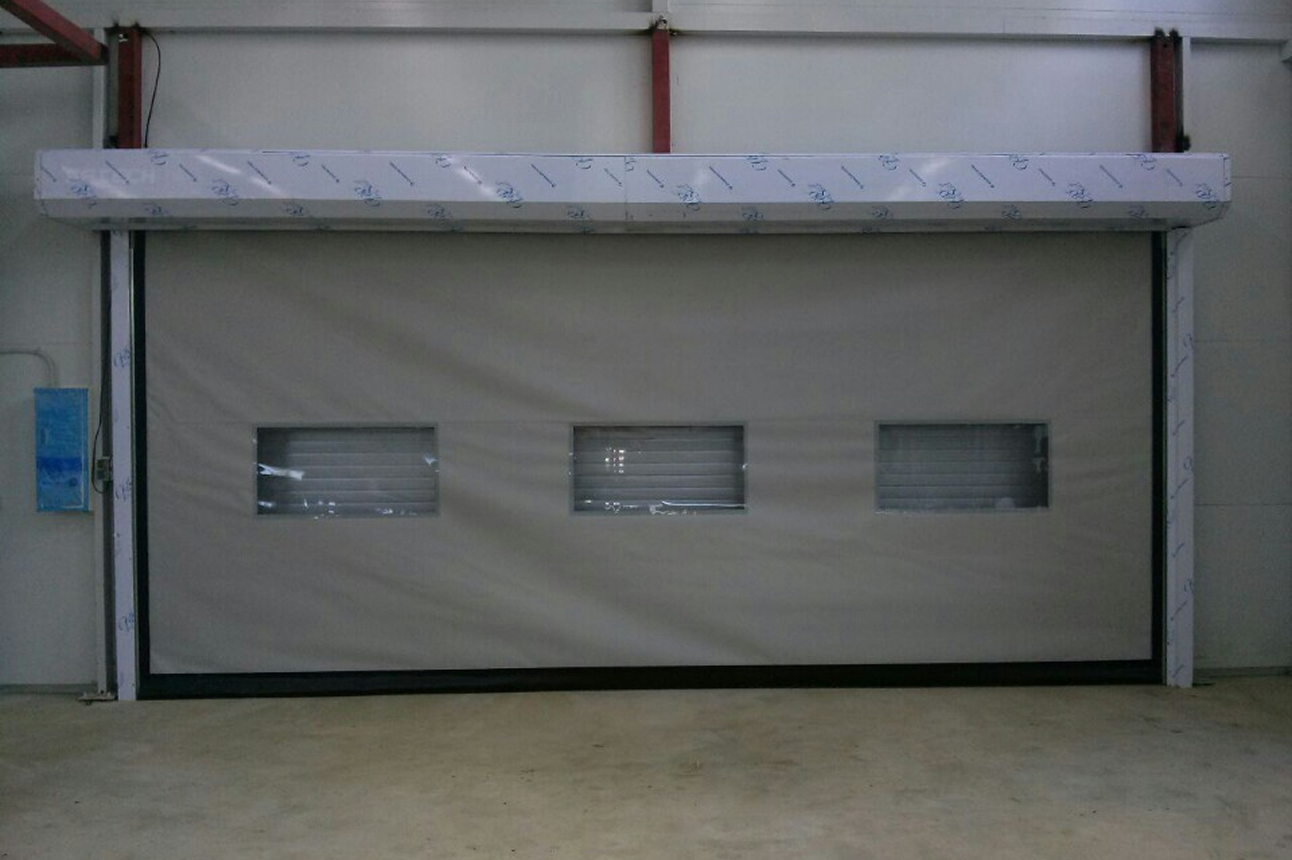

Installation Cases

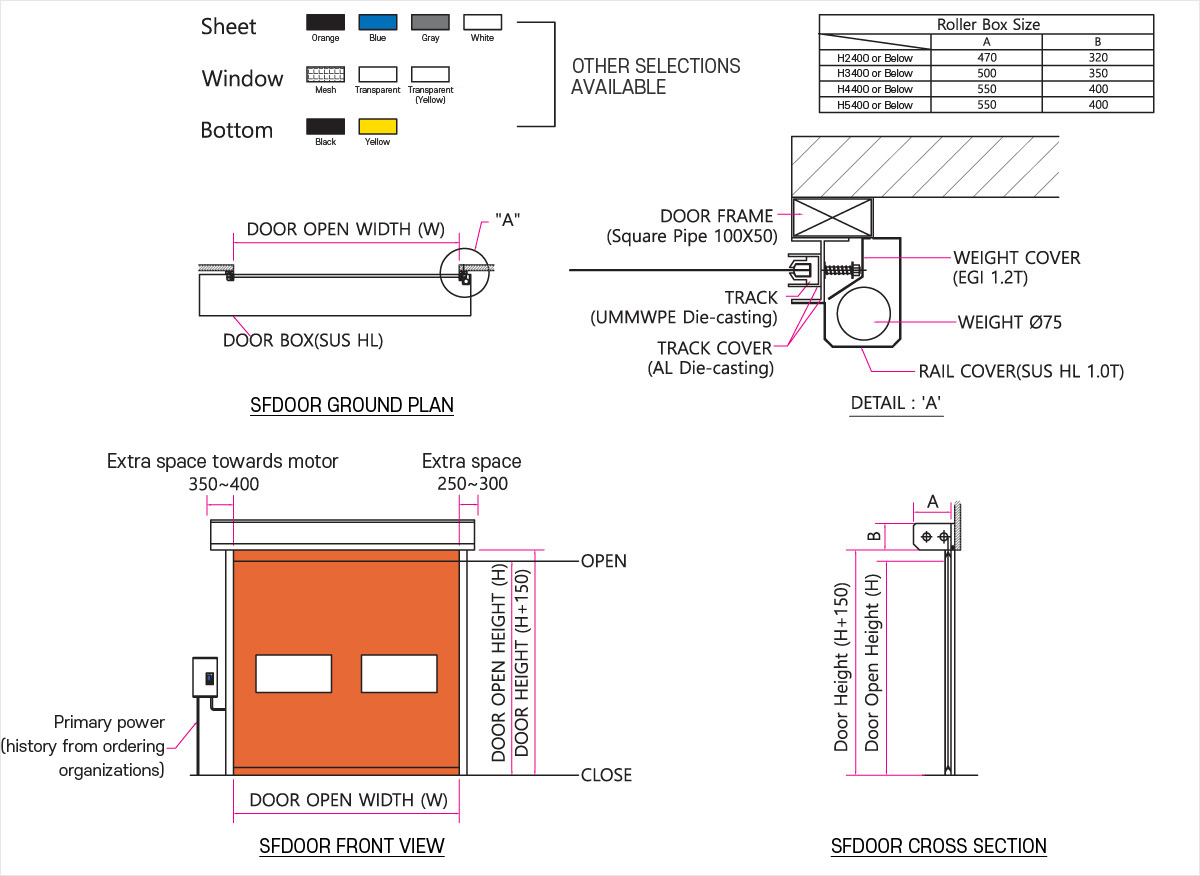

Product Drawing
Product Specifications
Field Specifications
Door Curtain Soft PVC + Fabric 0.9T – Transparent Window: PVC Transparent 2.0T Flexible PVC
Curtain Color Orange,Gray,Blue
Motor Geared Motor(0.75~2.2Kw)
Door Rail AL Extrusion + UHMWPE
Door Box Cover Stainless Steel HL 1.0T
Operating Speed Open(Max) / Close(Max) - 1.5m/sec
Detection Selectable – Loop, Remote Control, Infrared, etc.
Sheet Comparison
Thickness 0.9mm 2.0mm
Flame retardant Performance Class 1 Flame Retardant None
Advantages Soft and versatile Resistant to creasing
Disadvantages Susceptible to damage from sharp objects Hardens at low temperatures
Weight 1kg/m² 2.5kg/m²
