SF opens the door to the future

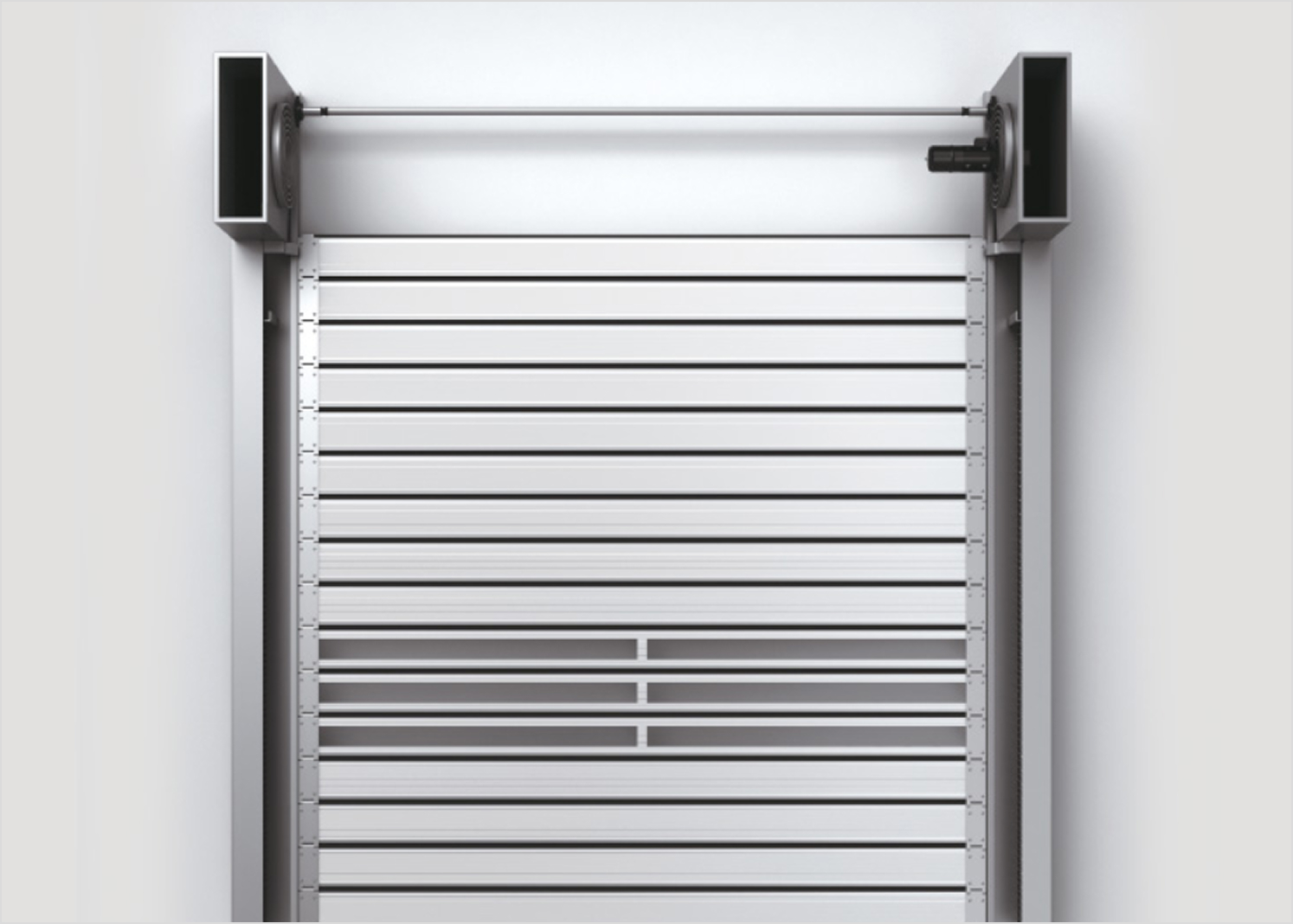

SPIRAL DOOR
SPIRAL DOOR
Feature 1
Vertically rising panels are stored in spiral rail extensions, operated by motor and spring counterbalance for stable and fast performance.
Feature 2
Rubber seals between 45T panels enhance insulation and airtightness; double rails ensure elegant appearance and optimal performance.
Installation Cases

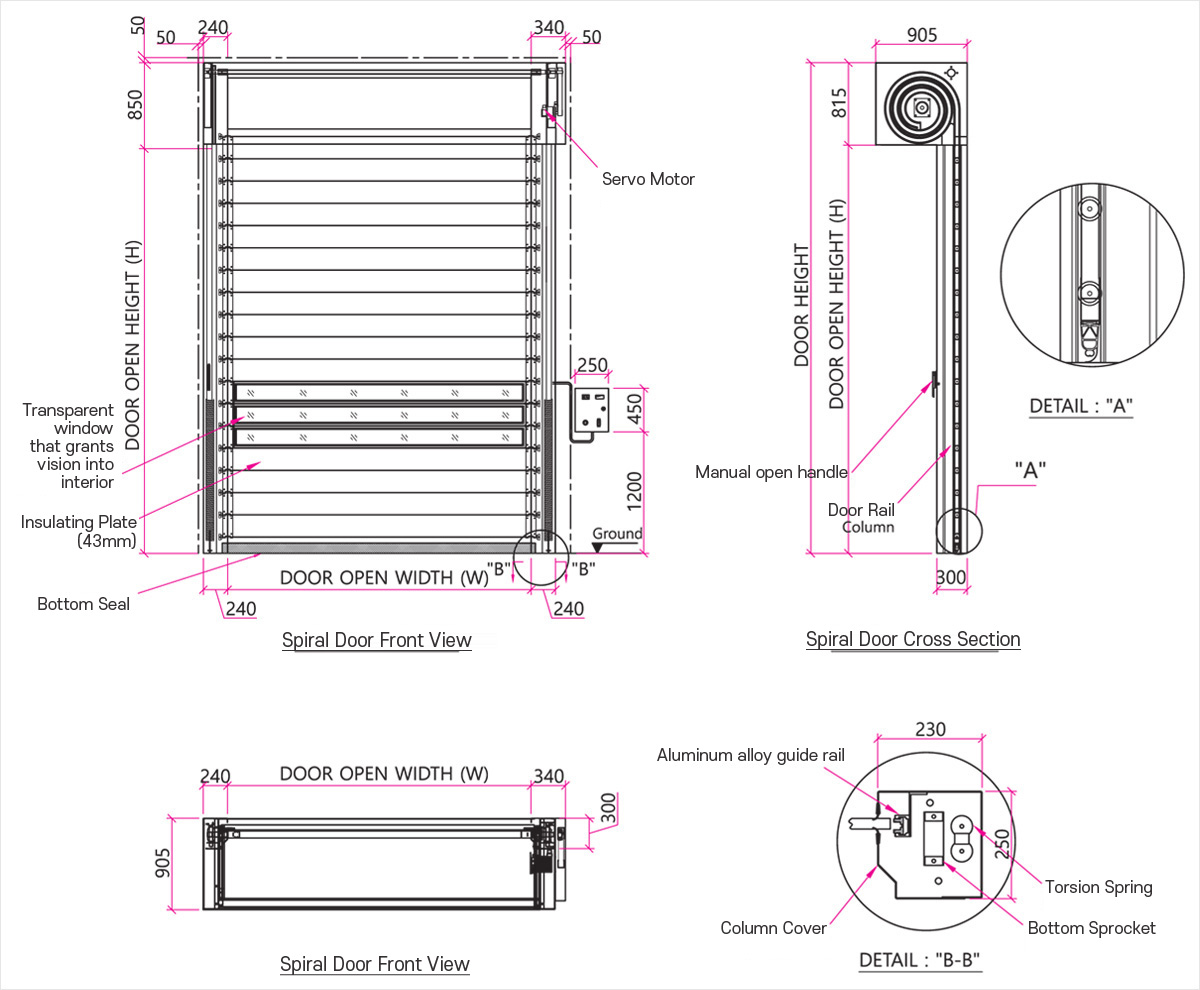

Product Drawing

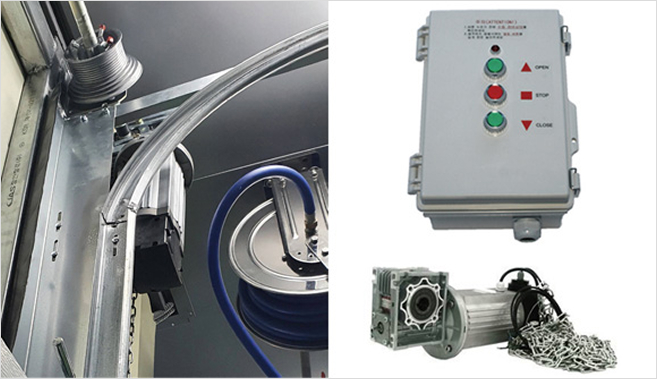

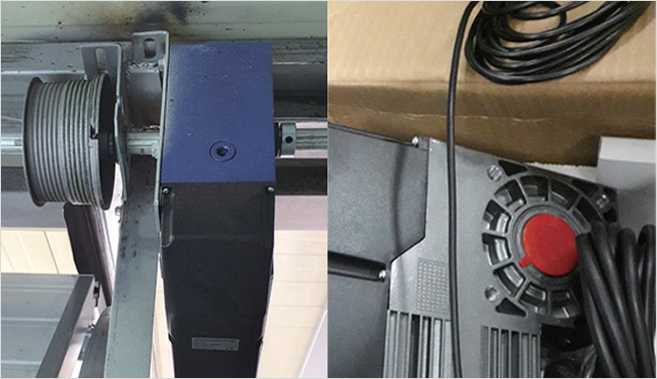

Control and Motor Types
BLDC Motor – Modified for overhead doors; lightweight with high output, though occasional positioning errors may occur.
3-Phase Motor – Adapted for overhead doors, easy to operate and convenient for domestic doors, but relatively expensive.
Hoist Motor – DC motor with chain reduction, sturdy and easy to operate, can run without a separate controller.
